Free Body Diagram
Draw the free body diagram of the below roller being held in place on a frictionless inclined plane.
Expand Hint
A force is a vector quantity where magnitude, point of application, and direction are all known.
Hint 2
There are three forces on the roller: force being applied by the person, the roller's weight due to gravity, and the normal force.

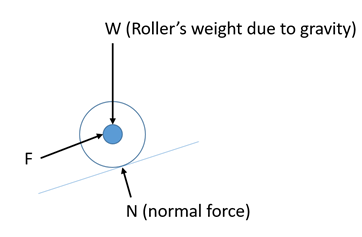

A force is a vector quantity where magnitude, point of application, and direction are all known. There are three forces on the roller: force being applied by the person, the roller's weight due to gravity, and the normal force. Gravity always points directly downward and the normal force is always perpendicular to the contact surface. The applied force is where the person is holding the roller in place.
Time Analysis
See how quickly you looked at the hint, solution, and answer. This is important for making sure you will finish the FE Exam in time.- Hint: Not clicked
- Solution: Not clicked
- Answer: Not clicked
